PHOENIX is a Ground Based Synthetic Aperture Radar (GBSAR) with imaging, interferometric and change detection capabilities for real-time displacement monitoring.


Main applications

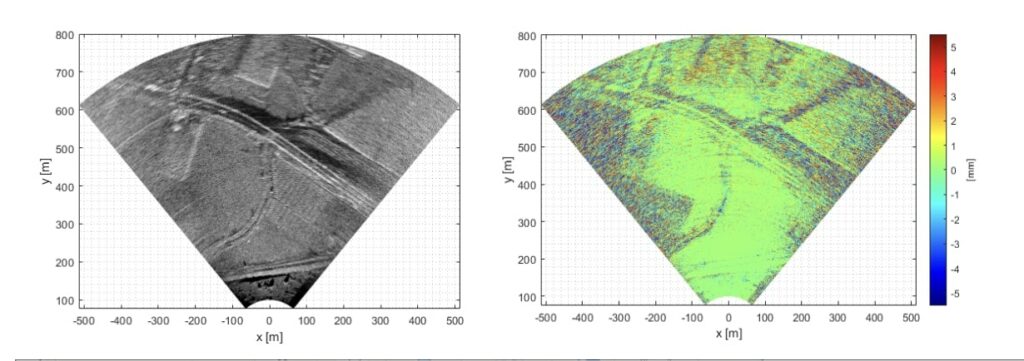

PHOENIX exploits interferometric techniques (InSAR) to measure surface deformations down to 0.1mm. The main applications are ground deformation monitoring, e.g. landslides, ground subsidence, rockfalls, glaciers, avalanches and volcanoes, and Structural Health Monitoring (SHM) of engineering structures, e.g. bridges, buildings, towers, dams, tailings and roads.

Best user experience

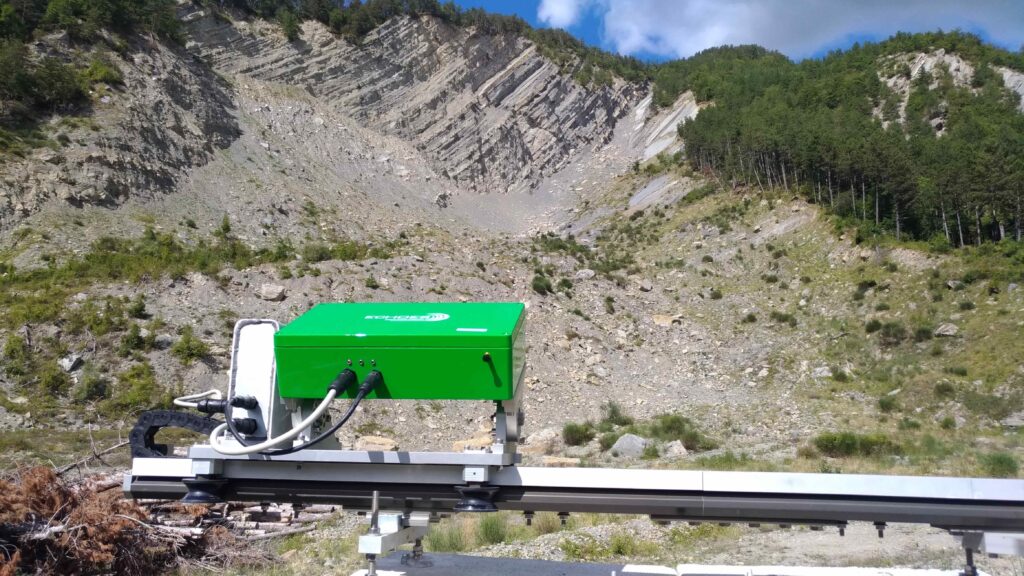

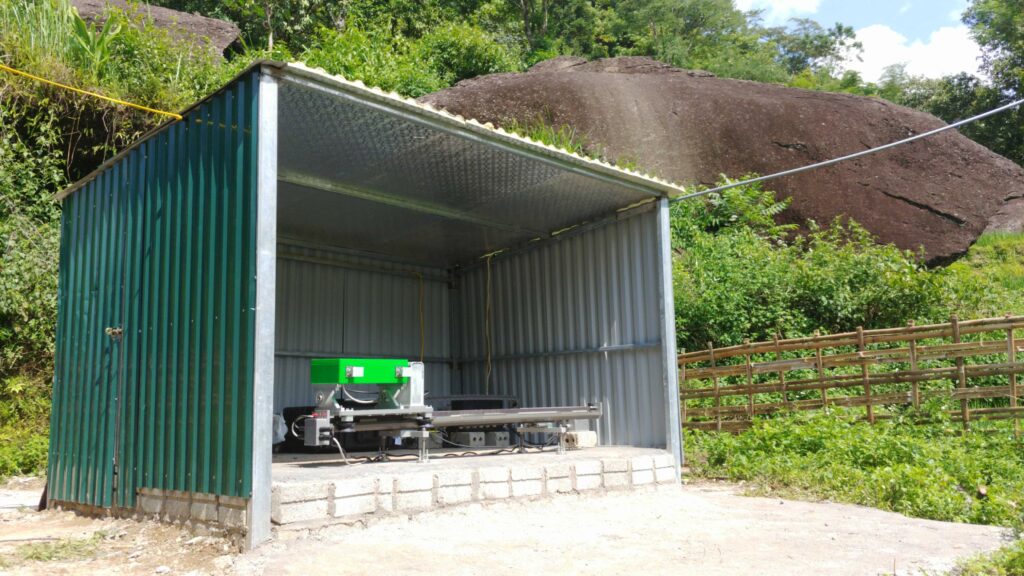

PHOENIX is designed for the highest user experience. Its strength is the modular configuration of the rail platform with interlocking segments (patented), real-time on-board SAR processing and a scan time of a few seconds (patented), allowing for quick and easy installations and for the monitoring of rapid movements. It can operate 24/7 in “all-weather” conditions, also in extreme and harsh environments.

Why choose PHOENIX?

PHOENIX is fully designed and produced by ECHOES with the highest focus to the end user needs, with highly competitive costs and a full customized support service.

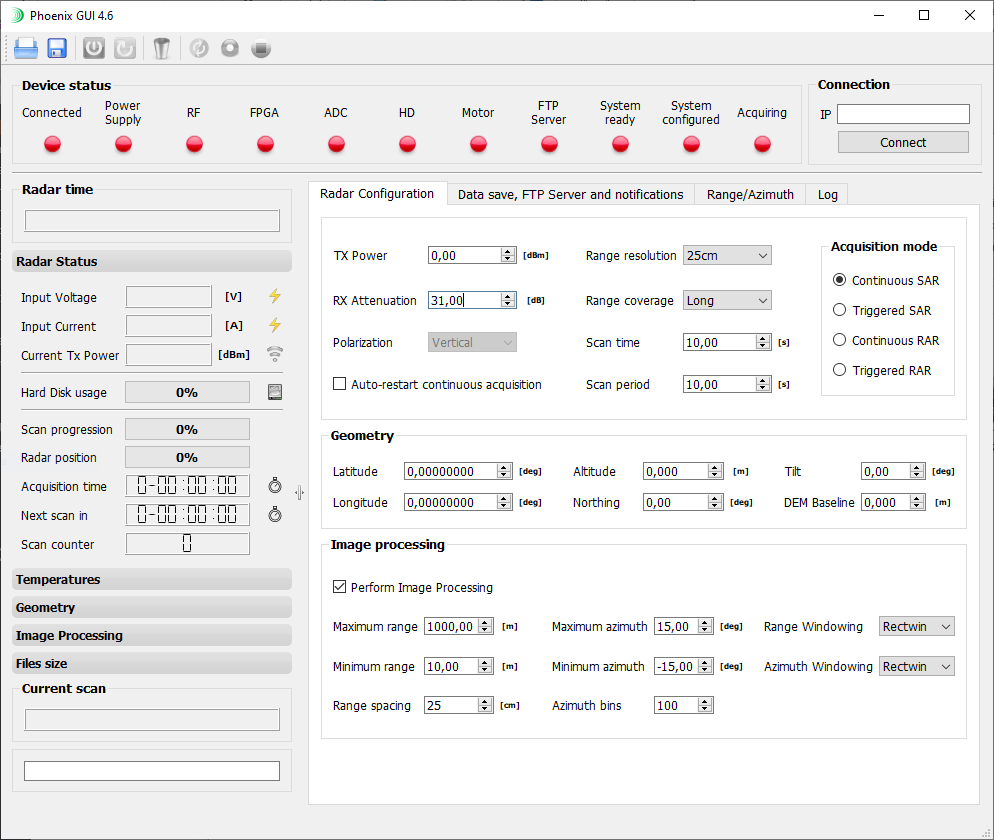

PHOENIX is provided with a dedicated graphic user interface that allows for the full remote system monitor and control from your host PC wherever is running (in your office or control room).

PHOENIX is suitable both for inexperienced users (through preconfigured settings) and experienced with a greater freedom of configuration compared to other systems on the market.

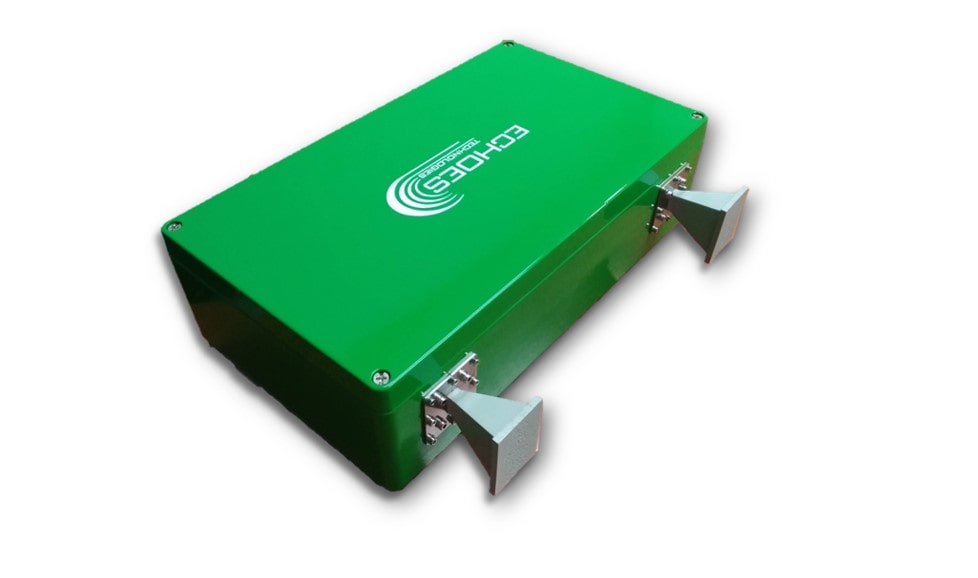

PHOENIX is based on a direct deramping Linear Frequency Modulated Continuous Waveform radar architecture and it is available both in single polarization (H or V) and fully polarimetric version. The very large bandwidth of the transmitted waveform allows for a range resolution down to 25 cm. PHOENIX is available both in X and Ku bands.

Advanced interferometric analysis

PHOENIX data can be processed and analyzed by TRIVIA, a powerful SAR data processing software developed by NHAZCA s.r.l., able to perform automatic real-time analyses, choosing from several data processing techniques, and to visualize the results through a user-friendly interface.

Phoenix - Echoes Tech

Main features of PHOENIX are:


  • High sensitivity to small deformations
  • It can operate day and night in all weather conditions (fog, rain etc..)
  • Very high resolution
  • Very fast scan (few seconds)
  • Modular architecture
  • Easy to be transported, deployed and configured
  • Full remote control without host PC
  • Low power consumption
  • Very low electromagnetic transmission
  • Available in X and Ku bands
  • Available in single or fully polarimetric configuration
Phoenix Echoes
Phoenix Echoes

PHOENIX can be modified according to the customer’s needs for different applications in all operative conditions and scenario.

Contact our team today to discuss your requirements or to receive the datasheet.
